PI Tape Contact

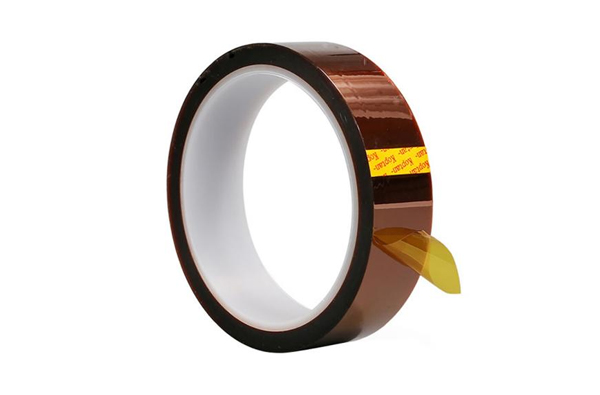

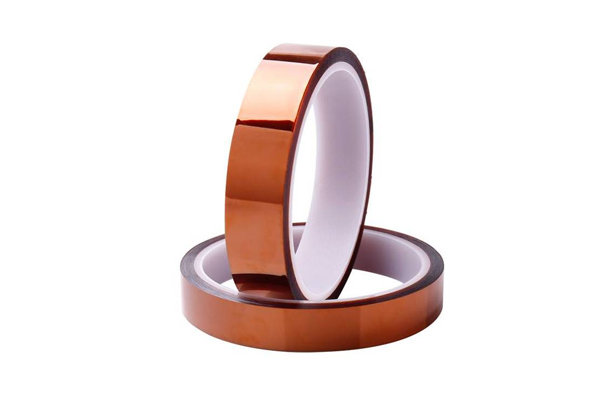

High Temperature Resistant PI Tape
PI silicone adhesive tape offers exceptional high-temperature resistance and thermal stability, making it suitable for use in high-temperature zones. It is particularly emphasized for applications within lithium-ion battery cells.
Products detail&application
PI silicone adhesive tape offers exceptional high-temperature resistance and thermal stability, making it suitable for use in high-temperature zones. It is particularly emphasized for applications within lithium-ion battery cells. It is commonly employed for:
1.High-temperature protection in tab welding areas, preventing short circuits and abrasion of the tabs.
2.Encapsulation/wrapping of high-temperature regions on the cell body itself.
3.High-temperature masking during welding processes, protecting against splatter.
Oil-based adhesive PI tape delivers good high-temperature performance. While its heat resistance is generally inferior to silicone-based versions, it plays a vital role in areas requiring tolerance to moderate temperatures. Typical applications include:
1.Protection of the battery cell's side surfaces.
2.Insulation at the cell's top.
3.Securing BMS flexible printed circuits (FPCs).
Technical Parameters
Total thickness (μm) | Glue type | Color | 180° Peel strength (N/25mm) | Tensile strength（N/25mm） | Holding power (h) | Elongation (%) | Thermal stability (℃) | Short term thermal stability | Permittivity (KV/mm) |
55 | Silicone | Amber | ≥6 | ≥55 | ≥12 | ≥35 | 200 | 300 | ≥8 |
60 | Silicone | Amber | ≥10 | ≥60 | ≥24 | ≥35 | 150 | 200 | ≥7.5 |
Storage Conditions
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: <80% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life
Water-based & Flame-Retardant Adhesives: 3 months
Solvent-based & Rubber Adhesives: 6 months
Related Applications
Tolerance Ranges
Parameter | Tolerance |
Material Thickness | ±0.005 mm |
Total Thickness | ±0.01 mm |
Width | ±0.5 mm |
Length | ±0.2 m |
